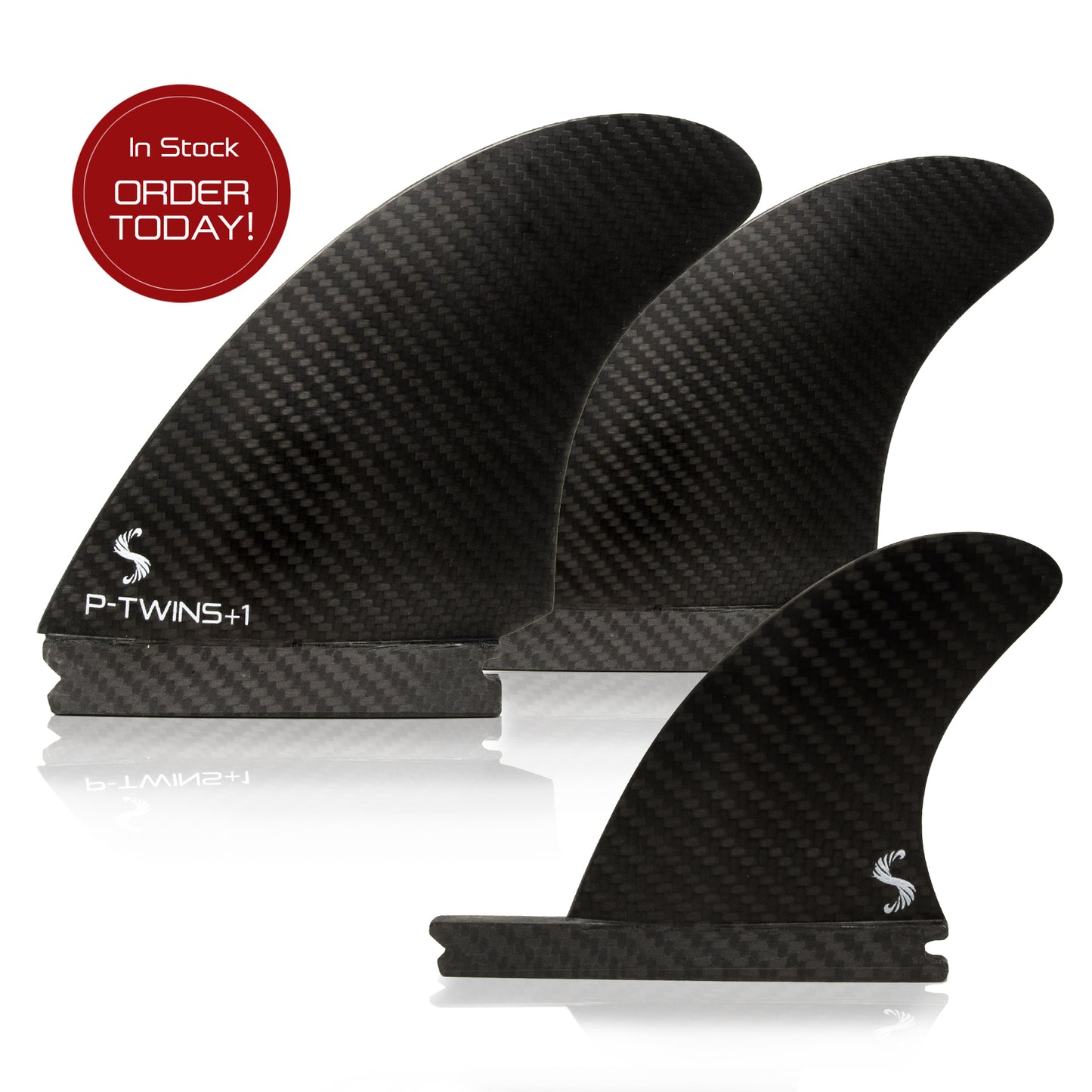

Prepreg Carbon Pivot Twin + Trailer

ORDER NOW!

NEXT LEVEL UP IN CARBON FIBER FINS

The newest technology and highest quality in carbon fins, Prepreg Carbon fiber is carbon cloth impregnated with a consistent 35% epoxy resin-to-cloth ratio. This ratio allows the perfect amount of resin to saturate the cloth. The material used is a combination of Twill/Uni carbon fiber prepreg.  Each fin is handmade using a lay-up process (placing each layer of prepreg carbon by hand) onto the mold surface with specific flex patterns to achieve desired strength and flex goals. The prepreg carbon layup used in creating our fins is a superior, high-quality process of heat and pressure curing to produce light, high-quality fins with structural integrity. These fins stand alone with superior materials and molding processes.

Noel’s desire to come out with our Lightning Series Prepreg Carbon Tech was purely performance driven for surfers who like precision through turns with lighter equipment. Whether the waves are well overhead or small and mushy, these Prepreg Carbon fins feel lively and offer predictability when you push hard through turns. While most carbon fins are stiff, these offer consistent flex, projection and drive due to the proprietary core.

Noel especially likes his small-wave surfing equipment super light and responsive. When the waves are head-high and below, Noel prefers surfboards in special constructions (EPS/Epoxy, XTR, Dark Arts, or other carbon surfboard layups) that offer more pop, projection, and drive through turns. These types of surfboard constructions are light weight with better flex properties to help generate speed easier in small waves. These Prepreg Carbon fins complement all surfboard constructions without over flexing to allow optimal and consistent performance. These Prepreg Carbon fins are roughly a 4 in flex on a scale of 1-10 (1 being very stiff and 10 being super flexible).

If you like your equipment fast, quick, and responsive, pair these Prepreg Carbon Pivot Twin+Trailer fins with your favorite surfboards in these categories: Grovelers, Twin Fin Boards, Fish, Small Wave Performance Boards, Daily Drivers, and HPSB (some High-Performance Short Boards).

• Prepreg Carbon Lightweight (40% lighter than fiberglass)
• Weight per set: 6.50 ounces
• Upright Template (offers quick pivot)
• Wide Base for more Drive
• Fast Directional Changes
• Excellent hold at High Speeds
• Promotes Progressive Surfing
• Stabilizer Fin (keeps board stable, loose, and playful)
• Beach Breaks and Point Breaks
• Made in USA

*fin images are prototype images, final products may be slightly different.

Fin Descr.

Pivot Twins + Stabilizer (P-Twins+1): The P-Twins+1 get into the lip quickly with its upright template. The wider base enables you to push harder through turns to maximize speed on rail without sacrificing pivot in the pocket. If you want quick directional changes for fast beach breaks or increased drive on rail at point breaks, the P-Twins+1 offer progression with stability. Pair them with your favorite Groveler, Small Wave Performance Board, or Daily Driver in 1-6’ surf. I also recommend using the P-Twins without the Stabilizer on certain Twin Fin Boards. (Vee Bottom Twin Fin Boards or Twin Fin Boards that have the fin boxes set further back like 8.75”- 7.75” off the tail.)

For Surfers: (68 – 99.79 Kg / 150 - 220 lbs)

•  Upright Template (offers quick pivot)
•  Wide Base for more Drive
•  Fast Directional Changes
•  Excellent hold at High Speeds
•  Promotes Progressive Surfing
•  Stabilizer Fin (keeps board stable, loose, and playful)
•  Beach Breaks and Point Breaks

Construction

Construction:
Prepreg Carbon fiber is carbon cloth impregnated with a consistent 35% epoxy resin-to-cloth ratio. This ratio allows the perfect amount of resin to saturate the cloth. The material used is a combination of twill/Uni carbon fiber prepreg. The prepreg carbon layup used in creating our fins is a superior, high-quality process of heat and pressure curing to produce light, high-quality fins with structural integrity. These fins stand alone with superior materials and molding processes.

Unlike Other Composite Fins:
Other molded fins inject resin to saturate and fill the gaps where they lack cloth material. Cloth material is what gives you composite strength and flex. Resin is only the glue that holds everything together. Too much resin will add weight and create a more brittle lamination. Other fin processes also lack heat, pressure, and strength to control flex and precision to maximize performance.

Carbon Process

Molds:
An in-house CNC machine precisely cuts space-grade aluminum to create the fin mold, which produces identical fin after fin -- perfect consistent, foil and, finish.

These fins are handmade using a lay-up process (placing each layer of prepreg carbon by hand) onto the mold surface with specific flex patterns to achieve desired strength and flex goals.

After the prepreg lay-up process is completed into the mold, we add our closed-cell water-resistant propriety core.

Once the hand construction of the fin is complete, we press the layed-up molds in a heated, platen hydraulic press under intense pressure of 90,000 lbs. per square inch. The epoxy resin is cured with heat (thermos-set), thus the heated platens.

When it comes to composites, the more pressure while curing, the stronger the part.

After hydraulic press, fins are hand sanded three times to achieve perfect leading/trailing edges and perfect fitting into fin boxes.

Specs

"Prepreg Carbon Pivot Twin + Trailer"
Fin Specs:
Base: 131.65 mm
Height: 138.39 mm
Area: 21.96 sq inches
Rake: 32.9 Degrees
Foil: Flat

Stabilizer Specs:
Base: 3.28" / 83.31mm
Height: 3.27" / 83.06mm
Area: 8.05 sq in
Rake: 28.8 Degrees
Foil: 50/50

Disclaimer

The manufacturer and seller assume no liability or responsibility for injury caused by this product to any person or property of buyer, user, or other person. Use at your own risk.
